This proved petrol 1.7 litre engine is equipped with BOSCH fuel injection. This OHC engine is able to run in any conditions – extremely low or high temperatures. The output and torque curves together with differential gear ratios enable a problem-free off-road driving. It is compatible with OBD II standard, so the vehicle can be diagnosed in any workshop equipped with BOSCH or OBD II compatible diagnostics. This engine type can be modified to LPG fuel.
Description
Vehicle category
N1G
Drivetrain
4x4
Operating weight
1075-1575 kg
GVWR
385-885 kg
Number of seats / doors
5
/
2
Clearance
210 mm
Wheelbase
2 850 mm
Front gauge
1 440 mm
Rear gauge
1 436 mm
Fuel tank capacity
42 L
Cargo space size
1 240 ×
1 630 mm

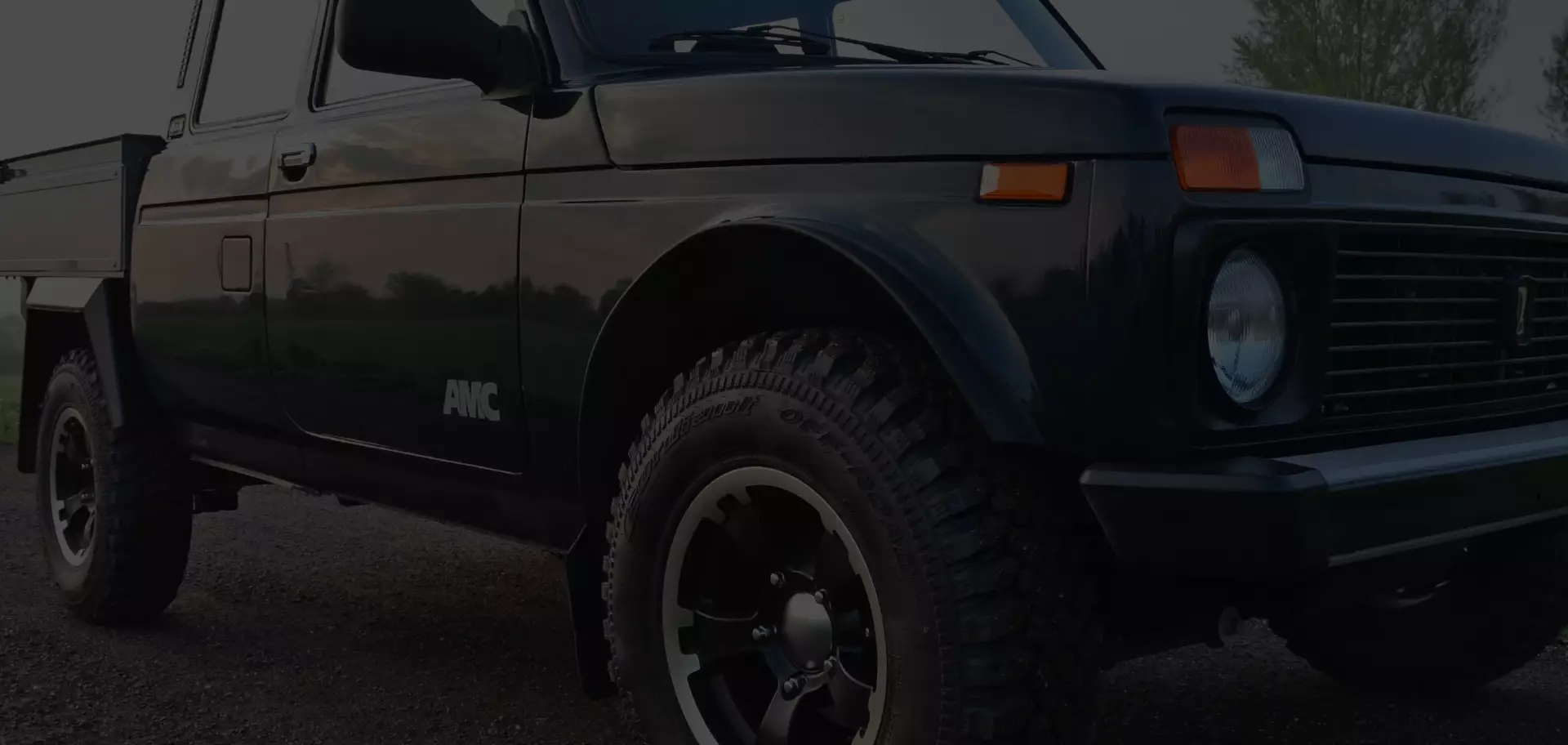

The Lada Niva 234610 Cargo offers a spacious cabin with 5 seats. The vehicle has a special half-frame design. The rear utility conversion is supported by a high torsion frame with leaf spring suspension providing a higher payload. The front part is a classic self-supporting body based on a Lada Niva modified for transporting 5 passengers. Comfortable driving in any conditions is provided by coil springs, a modernized chassis and dynamic vibration dampers.
The vehicle is currently unavailable.
Engines
Fuel
Petrol
Engine capacity
1 690 cm3
Output
61 kW
/
5 000 rpm
Torque
129 Nm
/
4 000 rpm
Fuel consumption
10,2-10,5 l/100km
CO2
241-248 g/km
VAZ 21214
The Lada Niva excels in high reliability and minimal maintenance costs thanks to minimal usage of electronics. The vehicle is equipped with an all-time 4WD, a mechanically lockable inter axle differential, a 5-speed manual transmission and an additional 2-speed low range gearbox.
Equipment
The multipurpose 234610 Cargo offers comfortable road driving thanks to its extended wheelbase while offering unbeatable off-road capabilities of the classic Lada Niva. It is designed to transport both passengers and cargo in tough driving and demanding off-road conditions. The HardCross edition is equipped with automatic locking differentials and further superior equipment.
Technical Description
Vehicle
Make
LADA
Type
23461
Business designation
Lada Niva Pickup "Double cab"
Vehicle category
N1G
General construction characteristics
Number of axles
2
Number of wheels
4
Driving axles (number / position / connection)
2
Main dimensions
Wheelbase
2 850
mm
Length
4482
mm
Width
1733
mm
Height
1998
mm
Weights
Mass of the vehicle in running order
1075-1575 kg
Technically permissible maximum masses
echnically permissible maximum laden mass
1950
kg
Technically permissible mass on axle 1
900
kg
Technically permissible mass on axle 2
1 100
kg
Technically permissible maximum mass of the combination
3360
kg
Technically permissible maximum towable mass in case of
Centre-axle trailer
1400
kg
Unbraked trailer
400
kg
Technically permissible maximum static vertical mass at the coupling point
60
kg
Power plant
Manufacturer of the engine
VAZ
Engine code as marked on the engine
21214
Number and arrangment of cylinders
4
Engine capacity
1690
cm3
Fuel
Petrol
Max. net power [kW] at [rpm]
61 / 5000
Maximum speed
Maximum speed
137
kph
Axles and suspension
Axle track 1
1440
mm
Axle track 2
1436
mm
Tyre/wheel combination (original design)
5x16, 185/75 R16 92Q
Body
Number and configuration of doors
2
Number of seating positions (including driver)
5
Coupling device
Approval number of drawbar approval marking (if installed)
A50-X
Enviromental performances
Sound level
Exhaust Emission level
EURO 6
