This modern spark-ignition 16V engine is equipped with BOSCH fuel injection. It provides maximal output and torque in low revs, which implies its fundamental advantage in harsh off-road operation. During the on-road operation it offers swift moving offs and cultivated running. Its sufficient output and gear ratios enable problem-free motorway operation. This engine type is suitable for a modification to LPG fuel and can be diagnosed via OBD connector.
Description
Vehicle category
N1G
Drivetrain
4x4
Operating weight
1850-2475 kg
GVWR
405-1030 kg
Number of seats / doors
2 - 7
/
4
Clearance
210 mm
Wheelbase
2 300 mm
Front gauge
1 474 mm
Rear gauge
1 460 mm
Fuel tank capacity
77 L
Cargo space size
2 700 ×
1 680 mm

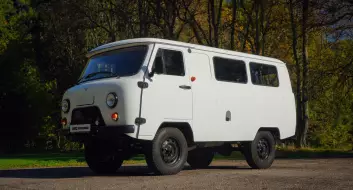

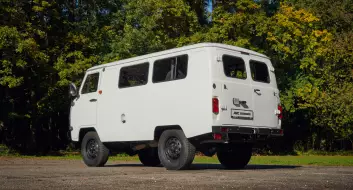

The immortal "Bukhanka" UAZ 2206 AMC is an unbeatable off-road minibus in its class. It is based on a flexible high torsion ladder frame with all-metal closed cabin. The vehicle's suspension has four leaf springs and two solid axles. This arrangement secures a long lifespan of the chassis and high durability. The simple design with a minimal use of electronics maintains reliability and low maintenance costs.
Starting from
23 150 €
Prices are without VAT and include specifications for the Czech and Slovak markets.
Engines
Fuel
Petrol
Engine capacity
2 693 cm3
Output
83 kW
/
4 250 rpm
Torque
198 Nm
/
2 500 rpm
Fuel consumption
Benzín: 13,1-13,9, LPG 13,7-16,5 l/100km
CO2
Benzín 303-322, LPG 222-266 g/km
ZMZ 40911
A modern 5-speed manual transmission together with the vehicle's light weight keeps a swift and comfortable driving experience even during long road trips. It is equipped with a mechanically connectable 4x4 drive and an additional 2-speed low range gearbox. The Bukhanka has a centrally located engine and gearbox which makes for an ideal weight distribution on both axles and all wheels for beating on even in rough terrain. On request, the UAZ 2206 AMC Country van is also suitable for conversion to an automatic transmission.
Equipment

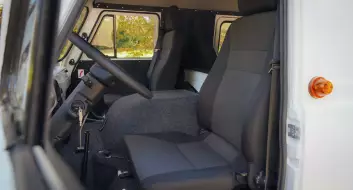

The UAZ 2206 offers a variable seating configuration according to your needs. The vehicle can be modified for every situation thanks to removable seats, and offers superior space and comfort for all passengers despite its compact body size. It amazes because of its traditional look and cost-efficiency ratio.
Technical Description
Vehicle
Make
UAZ
Type
2206
Business designation
UAZ Van 2206
Vehicle category
N1G
General construction characteristics
Number of axles
2
Number of wheels
4
Driving axles (number / position / connection)
2
Main dimensions
Wheelbase
2 300
mm
Length
4372-4876
mm
Width
1887-1950
mm
Height
2068-2380
mm
Weights
Mass of the vehicle in running order
1850-2475 kg
Technically permissible maximum masses
echnically permissible maximum laden mass
2880
kg
Technically permissible mass on axle 1
1 440
kg
Technically permissible mass on axle 2
1 440
kg
Technically permissible maximum mass of the combination
6 380
kg
Technically permissible maximum towable mass in case of
Centre-axle trailer
3500
kg
Unbraked trailer
750
kg
Technically permissible maximum static vertical mass at the coupling point
140
kg
Power plant
Manufacturer of the engine
Zavolzskyj motornyj zavod, Russia
Engine code as marked on the engine
40911
Number and arrangment of cylinders
4
Engine capacity
2693
cm3
Fuel
Petrol
Max. net power [kW] at [rpm]
83 / 4250
Maximum speed
Maximum speed
120
kph
Axles and suspension
Axle track 1
1 474
mm
Axle track 2
1 460
mm
Tyre/wheel combination (original design)
6,5Jx16; 225/75 R16 108H
Body
Number and configuration of doors
4
Number of seating positions (including driver)
2 - 7
Coupling device
Approval number of drawbar approval marking (if installed)
A50-X
Enviromental performances
Sound level
Exhaust Emission level
EURO 6
Information
Payment terms and conditions
An advance payment of at least 80% is required when ordering a new vehicle from Russia. It can be agreed individually.
Vehicle delivery period
When ordering a new vehicle from Russia the delivery time is 6-9 months if the vehicle is not in stock at the manufacturer.
UAZ AMC vehicle warranty conditions
The standard warranty period provided by the importer according to the vehicle price offer is 24 months or up to 100 000 km driven, whichever occurs first. Warranty conditions can be agreed individually with the business entities: the vehicle warranty period can be reduced upon agreement with the customer in the form of a discount, or extended upon a surcharge. The warranty period cannot be reduced in case the customer is a natural person. Terms and conditions are governed by bilaterally signed vehicle warranty conditions which constitute an integral part of the purchase agreement and handed over documentation.
UAZ AMC vehicle warranty repairs
In case a failure occurs within the warranty period, it can be claimed:
1. at warranty service of AMC spare parts s.r.o., business address: Radíkovice 19, Hradec Králové 503 27, Czech Republic or at another chosen warranty service centre within the AMC service network (Warranty service centre is authorized to perform warranty repairs without a consent of the seller)
2. at the seller, who, if necessary, issues a single license - written agreement with the specific defect repair at the selected service centre within the AMC network (Authorized Service is not authorized to perform warranty repairs without the consent of the seller)
Regular service of UAZ AMC vehicles
1. AMC Full-Service:
Regular vehicle service (as prescribed by the periodic maintenance in the service booklet) is provided by a service centre of the importer, authorized by AMC spare parts s.r.o., business address: Radíkovice 19, Hradec Králové 503 27, Czech Republic and through AMC full-service. The vehicle can be for a pre-agreed fixed fee regularly taken to be serviced by the importer and after performing the service it is immediately returned to the customer. There is full liability insurance for the vehicle taken. We recommend it for vehicles used in the Czech Republic and neighbouring countries.
2. Service through the network of authorized AMC service centres:
Regular vehicle service (as prescribed by the periodic maintenance in the service booklet) is provided by a contractual authorized service centre of the importer. It is guaranteed that the service centre is located within 40 km from a place of the vehicle operation. The authorized service centre is obliged and entitled to carry out the vehicle full service and repair works paid by the customer. The authorized service centre is not automatically entitled to exercise the rights of the buyer resulting from the warranty, but after a specific written consent of the seller it can be entitled to settle them.
3. Find your service
Do you know a service centre in your neighbourhood that you would like to use for the maintenance of your new UAZ vehicle? Do you know that they charge reasonable prices, have an experienced staff, good references and satisfied customers? Just ask. In case of interest, we are ready to sign a vehicle service authorization contract with your chosen service centre and to include it into the AMC authorized service network.
Separate supplies of spare parts
Spare parts and additional equipment for UAZ AMC vehicles are anytime ready for you at reduced prices in the central warehouse of AMC spare parts, s.r.o., business address: Radíkovice 19, Hradec Králové 503 27, Czech Republic. The spare parts are distributed via postal or courier service directly to your address every working day. Your order has to be received before 4:00 PM in order to be dispatched on the same day.
